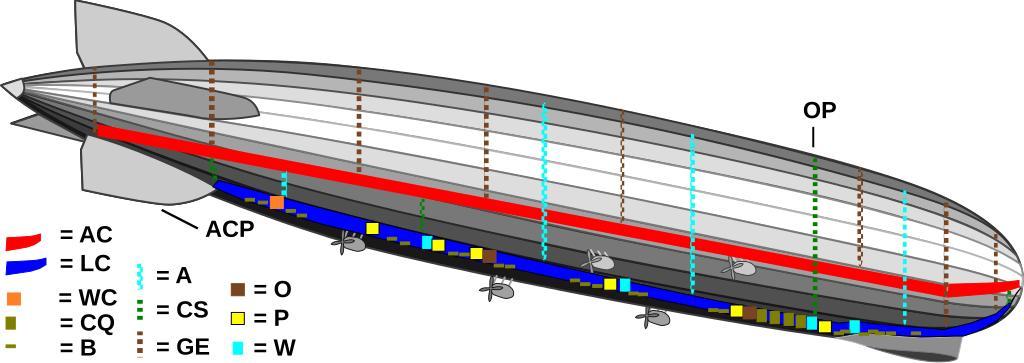

| Keywords: Zeppelin-LZ-127 internal.svg en Airship LZ 127 Graf Zeppelin drawing after model with some internal components Key ACP Auxiliary control post red AC axial corridor running from main ring -2 to the front mooring hub blue LC lower corridor running from main ring 20 to ring 211 ending at ladder to axial corridor orange WC crew's toilet beige CQ crew's quarters with tables chairs and berths beige B berths or cargo space blue stripes A ventilation shaft green stripes CS climbing shaft brown stripes GE exhaust gas shaft brown box O oil tanks yellow box P petrol tanks light blue box W water tank OP Observation post on top of hull Note this SVG file has two separate layers the model layer and the annotations layer own and Thyes 2007 Thyes original 84user annotations File Airship-Zeppelin-LZ-127 svg Original diagram File Zeppelin-LZ-127 internal and gas cells svg With internal structure and gas cells File Zeppelin-LZ-127 gas cells svg With internal gas cells File Zeppelin-LZ-127 internal opaque svg With internal structure slightly opaque File Zeppelin-LZ-127 internal and gas cells opaque svg With internal structure and gas cells slightly opaque thumb right 200px Thumbnail of this illustration at 200 pixels as rendered inside an article - Thyes AttribSVG Airship-Zeppelin-LZ-127 svg Thyes Created with Inkscape yes ValidSVG http //upload wikimedia org/wikipedia/commons/d/db/Zeppelin-LZ-127_internal svg LZ 127 Graf Zeppelin Language-neutral aviation diagrams Line drawings of airships SVG aircraft Cutaway diagrams of aircraft | ||||
