MAKE A MEME View Large Image Vibrating wire piezometer from USBR 6515-09 Fig. 1.png en A vibrating wire piezometer from Figure 1 in USBR 6515 Procedure For Using Piezometers to Monitor Water Pressure in a Rock Mass Piezometer -A vibrating wire piezometer commonly used ...
View Original:Vibrating_wire_piezometer_from_USBR_6515-09_Fig._1.png (1014x262)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This

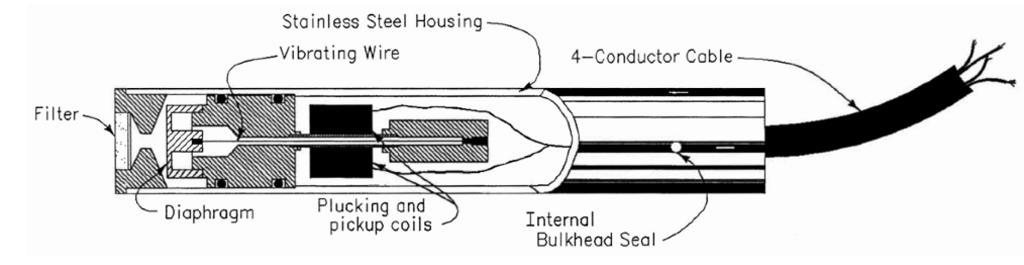

Keywords: Vibrating wire piezometer from USBR 6515-09 Fig. 1.png en A vibrating wire piezometer from Figure 1 in USBR 6515 Procedure For Using Piezometers to Monitor Water Pressure in a Rock Mass Piezometer -A vibrating wire piezometer commonly used by Reclamation is shown on figure 1 Its stainless steel housing nests the different components of the piezometer such as 1 the filter 2 the diaphragm 3 the vibrating wire 4 the plucking and pickup coils 5 the internal bulkhead seal and 6 the cable connectors The vibrating wire converts the fluid pressures into equivalentfrequencysignalsthatare then recorded The piezometer pressure range could be 0 034 to 34 5 MPa 5 to 5 000 lbf/in2 with an accuracy of ±0 5 percent 2014-03-13 13 16 15 http //www usbr gov/pmts/geotech/rock/USBR_Rock_Standards/6515 pdf U S Department of the Interior Bureau of Reclamation PD-USGov Uploaded with UploadWizard Piezometer Measuring instruments
