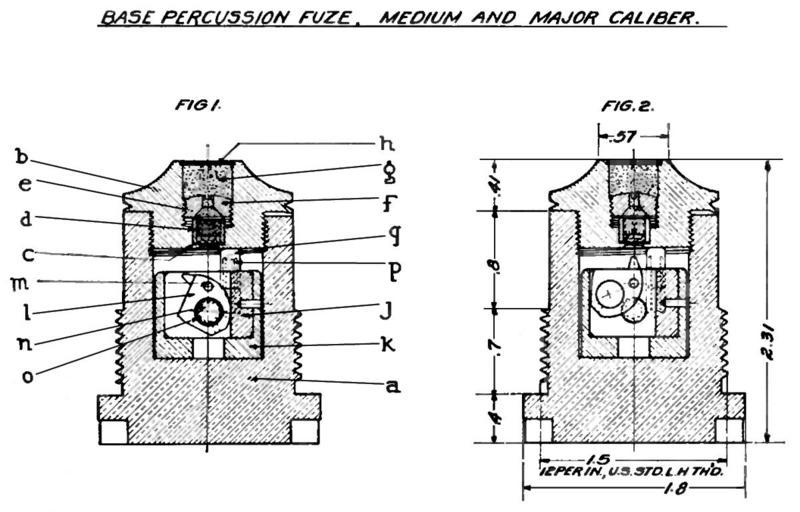

| Keywords: USBasePercussionFuzeMedium&MajorCaliber1916.jpg Diagram of US Base Percussion Fuze Medium Major Caliber 1916 as used with HE shell for 2 95 inch Mountain Gun US Army service <br>a Body brass <br>b Closing cap screw brass <br>c Primer shield brass <br>d Primer body brass <br>e Primer disk paper <br>f Primer closing screw brass <br>g Reinforcing charge loose shrapnel powder <br>h End closing disk brass <br>j Plunger brass <br>k Plunger housing brass <br>l Firing pun brass <br>m Firing-pin fulcrum steel <br>n Safety pin brass <br>o Safety-pin spring brass <br>p Restraining spring brass <br>q Restraining-spring housing brass Plate V in Handbook of the 2 95-inch mountain gun matériel and pack outfit <br>http //www archive org/details/handbookof295inc00unitrich June 10 1912 revised September 15 1916 United States Army Ordnance Dept US Government no copyright PD-USGov QF 2 95 inch Mountain Gun Fuzes of the United States 1910s technical drawings | ||||
