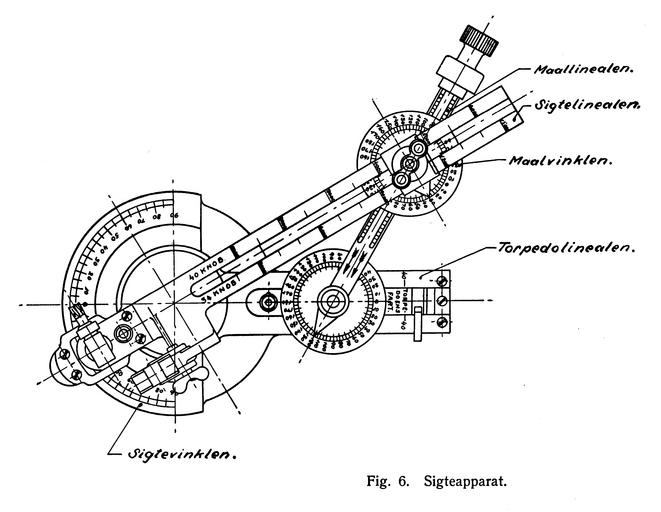

MAKE A MEME View Large Image Torpedo Director - Denmark.tif en A mechanical Torpedo Director from the Danish Navy circa 1930 The part named Torpedolinealen was aligned to a trainable torpedo tube The Sigtelinealen was the sight pointing at the target The Maallinealen ...
View Original:Torpedo Director - Denmark.tif.tiff (3425x2652)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Torpedo Director - Denmark.tif en A mechanical Torpedo Director from the Danish Navy circa 1930 The part named Torpedolinealen was aligned to a trainable torpedo tube The Sigtelinealen was the sight pointing at the target The Maallinealen was moved to represent the course of the target and screwed to represent its speed both movements affecting the position of the torpedo tube da Et mekanisk sigteapparat til torpedoer fra den danske Marine cirka 1930 Torpedolinealen var fastgjort parallelt med et drejeligt torpedoapparat Sigtelinealen havde monteret et sigte og skulle pege mod målet Maallinealen blev bevæget i overensstemmelse med målets kurs og blev skruet efter målets hastighed Begge bevægelser påvirkede torpedolinealens og dermed torpedoapparatets stilling Flaadelære 1935 Official Danish Navy Illustration 1930 Cc-zero Torpedoes
