MAKE A MEME View Large Image Regenerative receiver block diagram 2.svg regenerative radio receiver invented by Edwin Armstrong in 1912 is a type of radio receiver widely used up until the 1930s It consists of a tuned circuit that serves as a bandpass filter to select ...
View Original:Regenerative receiver block diagram 2.svg (1274x720)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This

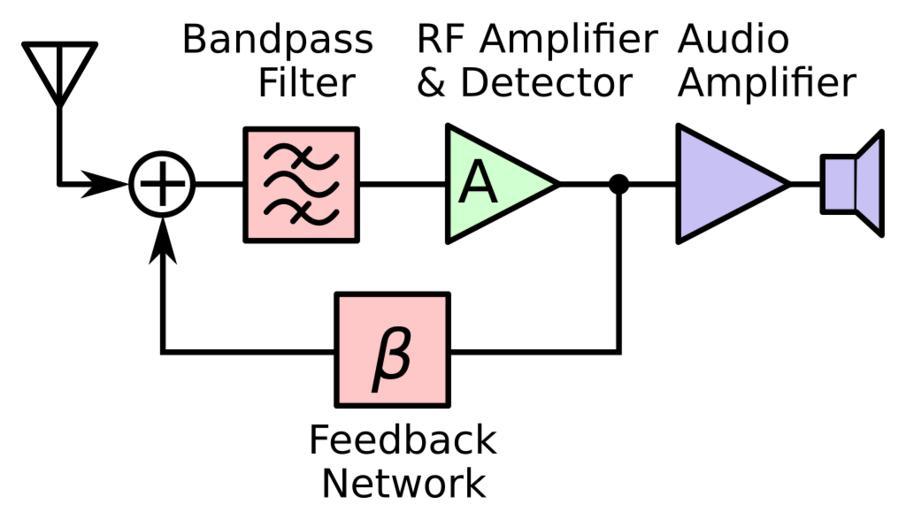

Keywords: Regenerative receiver block diagram 2.svg regenerative radio receiver invented by Edwin Armstrong in 1912 is a type of radio receiver widely used up until the 1930s It consists of a tuned circuit that serves as a bandpass filter to select the desired radio signal out of all the signals picked up by the antenna and a combined amplifier-detector to increase the power of the signal and extract the audio modulation sound signal from from the radio carrier wave The gain of the amplifier is increased by regeneration positive feedback feeding some of the energy from the output of the amplifier back into the tuned circuit at the input Regeneration can not only increase the gain of the amplifier by a factor of 10 000 it also decreases the bandwidth of the filter by the same factor increasing the selectivity of the receiver greatly The resulting audio signal can be amplified in a separate audio amplifier before being applied to the speaker 2016-01-06 own Chetvorno other versions cc-zero Regenerative circuits Uploaded with UploadWizard
