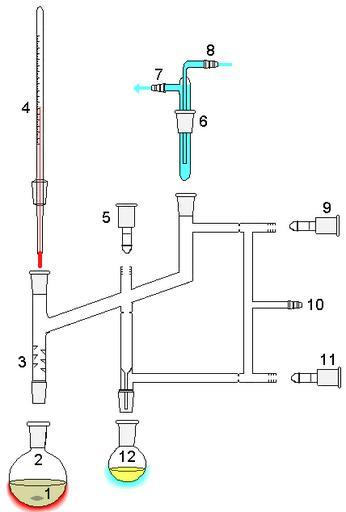

| Keywords: Perkin triangle distillation apparatus.png 1 Stirrer bar/anti-bumping granules 2 Still pot 3 Fractionating column preferably vacuum jacket insulated 4 Thermometer/Boiling point temperature 5 Teflon tap 1 distillate collecting tap 6 Cold finger 7 Cooling water out 8 Cooling water in 9 Teflon tap 2 still isolation tap 10 Vacuum/gas inlet 11 Teflon tap 3 distillate isolation tap 12 Still receiver Perkin triangle distillation apparatus png A Perkin triangle is versatile piece of apparatus that can be also be used to collect distillation fractions which does not require a cow or pig adaptor A Perkin triangle is most often used where the distillates are air-sensitive or where the fractions distil and are collected under reduced pressure vacuum distillation but can be used for a drying solvents or for simple and fractional distillation http //en wikipedia org/wiki/perkin_triangle 2006-10-27 Quantockgoblin Own work all rights released public domain See svg version 65px Laboratory distillation apparatus Vacuum distillation Condensers chemistry laboratory equipment | ||||
