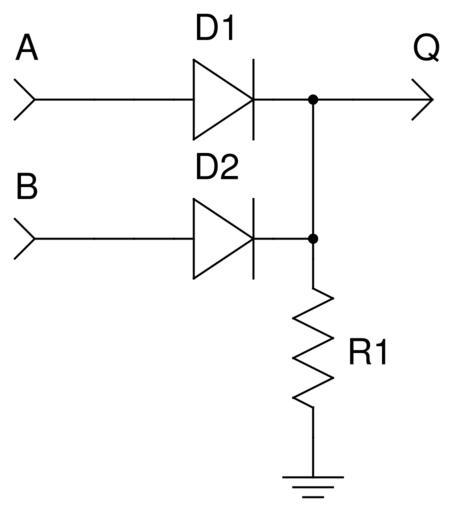

MAKE A MEME View Large Image ORGate-2-Diode.svg en Schematic 2-input OR logic implemented with diodes and a resistor If A B or both are Vcc high then Q is Vcc high If A and B are both either ground or not connected then Q is grounded low 2013-12-26 16 42 36 own ADSLLC ...
