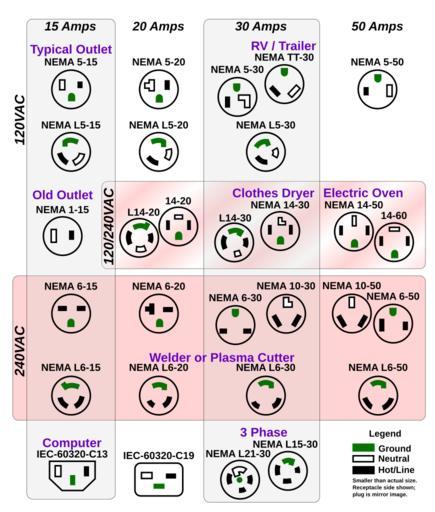

| Keywords: NEMA receptacle pins.svg en A selection of NEMA receptacles showing ground neutral and hot/line pins Earth/ground is dark green neutral is white and hot/line is black Typical modern North American uses for common receptacles are shown in purple Sadly this is not an exhaustive list References Receptacle side shown here http //www nooutage com/nema_configurations htm Plug side shown here http //www refurbups com/Plug-Information Prints smaller than actual size Plugs drawn freehand; mechanical dimensions are very approximate Electrical connections should be positively verified before use as this information was collected from online sources of unknown reliability own Olawlor 2011-07-24 My new version NEMA_simplified_pins svg File NEMA simplified pins svg removes the bottom row's 3-phase power plugs and IEC computer connectors as a way to simplify the table Cc-zero Mains adaptors Electrical parts and components | ||||
