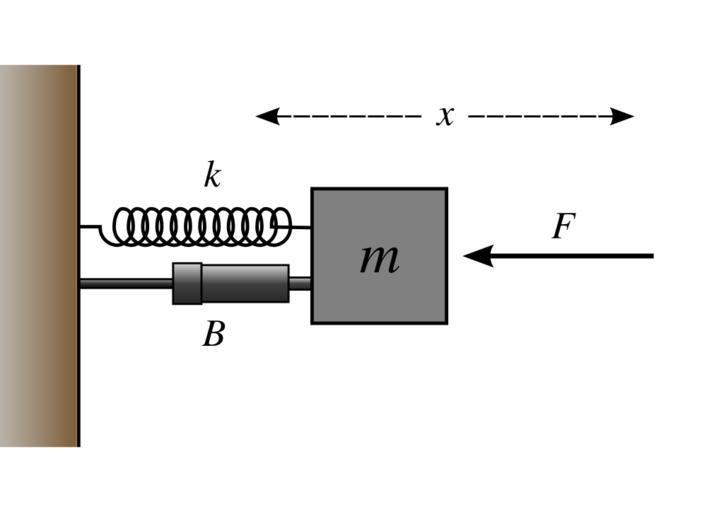

| Keywords: Mass-Spring-Damper.svg A mass/spring/damper system drawn in Inkscape by Ilmari Karonen A pre-rasterized PNG version is available at Image Mass-Spring-Damper png There seem to be some problems with this file; at least on my Mozilla Firefox browser one of the arrowheads is missing The picture should also be clipped to its bounding box I'm rather new with this so if anyone can help me fix these problems I'd be thankful Ilmari Karonen 10 02 1 November 2005 UTC 2005-11-01 own assumed Ilmari Karonen Legend x displacement from equilibrium m f external force or disturbance applied to system kg m s<sup>-2</sup> m mass of the block kg B damping constant of dashpot kg s<sup>-1</sup> k force constant of spring kg s<sup>-2</sup> Mass-spring-dampers | ||||
