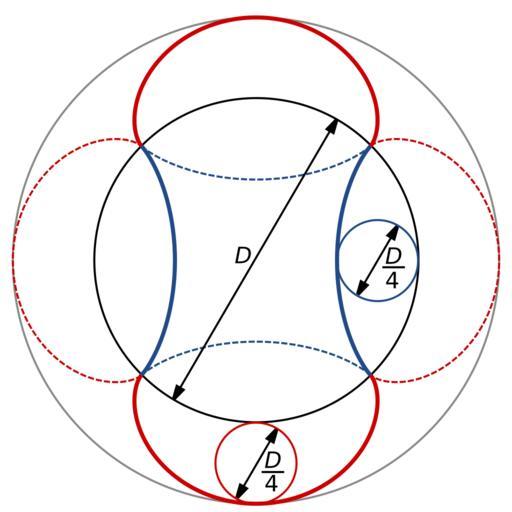

MAKE A MEME View Large Image Cycloidal rotor construction - 2 lobes.svg Diagram showing the construction of a 2-lobed cycloidal rotor like that found in a Roots blower The red curve is an hypocycloid outside the larger generating circle black and the blue curve is an ...
View Original:Cycloidal rotor construction - 2 lobes.svg (250x250)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Cycloidal rotor construction - 2 lobes.svg Diagram showing the construction of a 2-lobed cycloidal rotor like that found in a Roots blower The red curve is an hypocycloid outside the larger generating circle black and the blue curve is an epicycloid The smaller circles are 1/4 the diameter of the larger circle The solid curve is the profile of the rotor - half is the epicycloid and half is the hypocycloid own 2010-08-27 Inductiveload Lobe pumps Hypocycloid Epicycloid
