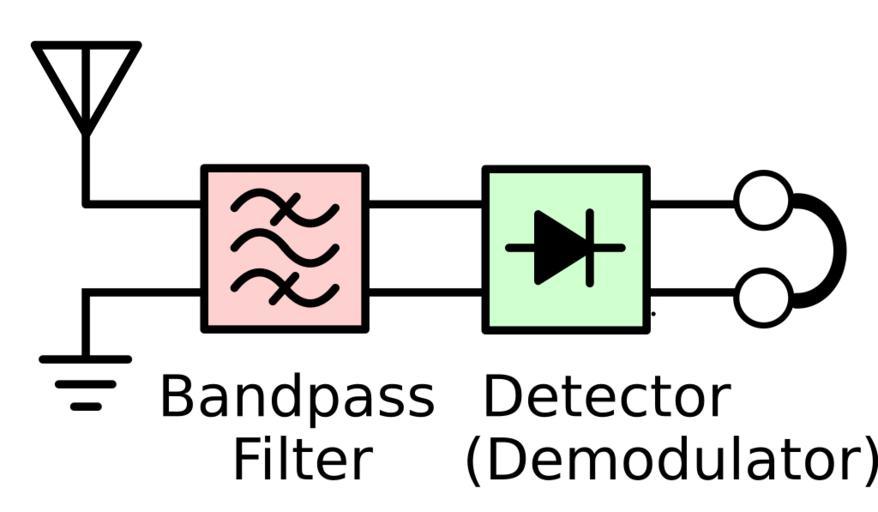

MAKE A MEME View Large Image Crystal radio receiver block diagram.svg crystal radio the simplest type of radio receiver which was invented in the early 1900s and widely used until vacuum tube receivers replaced it It consists of an antenna attached to a tuned circuit ...
View Original:Crystal radio receiver block diagram.svg (856x499)
Download: Original    Medium    Small Thumb
Courtesy of:commons.wikimedia.org More Like This
Keywords: Crystal radio receiver block diagram.svg crystal radio the simplest type of radio receiver which was invented in the early 1900s and widely used until vacuum tube receivers replaced it It consists of an antenna attached to a tuned circuit which functions as a bandpass filter which allows through the frequency of the desired station while rejecting all the other radio signals picked up by the antenna followed by a detector consisting of a semiconductor diode which extracts the audio modulation signal sound from the radio frequency carrier wave The audio is applied to earphones which convert it to sound waves 2016-01-05 own Chetvorno other versions cc-zero Crystal radios Radio receivers Uploaded with UploadWizard
