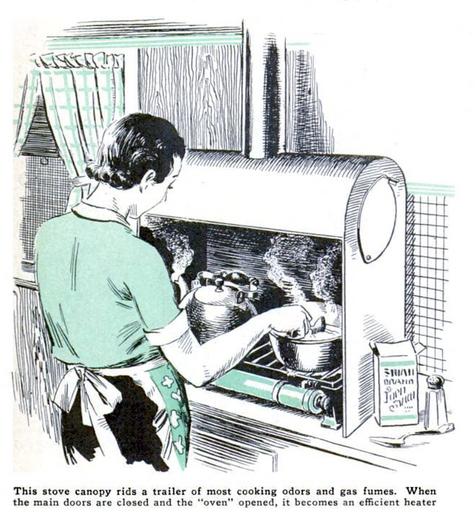

| Keywords: illustration drawing cartoon sketch Popular Science July 1937 Stove Canopy. The canopy illustrated, according to its designer, Harold P. Rykken, will get rid of most of the cooking odors and gas fumes from the trailer stove, and when the weather is chilly, it can easily be converted into a heater. The material is 26-gauge galvanized or black iron. To use as a heater, the front shutter is slipped into the side channels and then up into the upper channel. The 9-in. tube near the top of the campy is for additional heating surface and can be used for warming small dishes when the “oven” doors are closed. If this feature is omitted, some expense may be saved and the canopy will gain slightly in efficiency, but more than 5 sq. ft. of heating surface is lost. The vent should run straight tip, and the collar may have to be placed off center in order to avoid a ceiling joist. Install a 6-in. damper in the collar and a ventilator on the roof. In most cases the canopy will have to be made in a sheet-metal shop. haw-creek.com/improved-trailer-fittings-make-life-on-whee... Popular Science July 1937 Stove Canopy. The canopy illustrated, according to its designer, Harold P. Rykken, will get rid of most of the cooking odors and gas fumes from the trailer stove, and when the weather is chilly, it can easily be converted into a heater. The material is 26-gauge galvanized or black iron. To use as a heater, the front shutter is slipped into the side channels and then up into the upper channel. The 9-in. tube near the top of the campy is for additional heating surface and can be used for warming small dishes when the “oven” doors are closed. If this feature is omitted, some expense may be saved and the canopy will gain slightly in efficiency, but more than 5 sq. ft. of heating surface is lost. The vent should run straight tip, and the collar may have to be placed off center in order to avoid a ceiling joist. Install a 6-in. damper in the collar and a ventilator on the roof. In most cases the canopy will have to be made in a sheet-metal shop. haw-creek.com/improved-trailer-fittings-make-life-on-whee... | ||||
