| View Original: | ATmega8 ADC sampled 50 Hz noise at 28.125 Hz rate.svg (512x512) | |||
| Download: | Original | Medium | Small | Thumb |
| Courtesy of: | commons.wikimedia.org | More Like This | ||

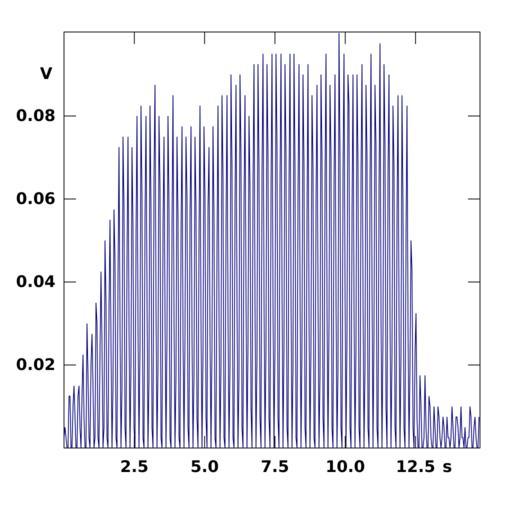

| Keywords: ATmega8 ADC sampled 50 Hz noise at 28.125 Hz rate.svg ADC at 28 …› Hz sampling rate The signal is a 50 Hz noise from the power lines picked up via a simple wire with a hand moving closer to and then away from this simplistic antenna Please note that the sampling rate is almost four times below the Nyquist rate making this depiction grossly inaccurate Own Ivan Shmakov 2014-06-06 <gallery mode packed > ATmega8 ADC sampled 50 Hz noise at 450 Hz rate svg 450 Hz </gallery> ATmega8 Noise physics Cc-zero | ||||
