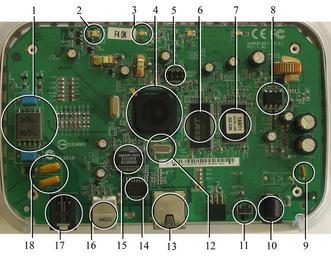

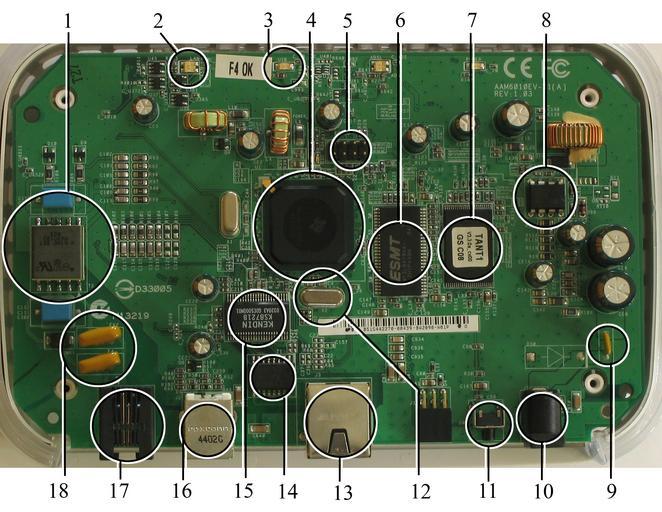

| Keywords: ADSL modem router internals labeled.jpg This image shows the parts found inside a Netgear DG632 ADSL Modem/router It acts as a router between an ethernet port and an ADSL broadband internet connection and provides typical home router features such as DHCP The labeled parts are as follows 1 Telephone decoupling electronics for ADSL <br /> 2 Multicolour LED displaying network status <br /> 3 Single colour LED displaying USB status <br /> 4 Main processor a TNETD7300GDU a member of Texas Instruments' AR7 product line <br /> 5 JTAG Joint Test Action Group test and programming port <br /> 6 RAM a single ESMT M12L64164A 8 MB chip <br /> 7 Flash memory obscured by sticker <br /> 8 Power supply regulator <br /> 9 Main power supply fuse <br /> 10 Power connector <br /> 11 Reset button <br /> 12 Quartz crystal <br /> 13 Ethernet port <br /> 14 Ethernet transformer Delta LF8505 <br /> 15 KS8721B ethernet PHY transmitter receiver <br /> 16 USB port <br /> 17 Telephone RJ11 port <br /> 18 Telephone connector fuses Photographed by User Mike1024 2006-05-07 User Mike1024 on http //en wikipedia org en wikipedia Originally posted on http //en wikipedia org en wikipedia Board of ADSL modem 00 19 13 January 2009 UTC ADSL modems Network hardware Taken with Canon PowerShot A80 Single-board computers | ||||
